Product Description
What is the Dagu DG008 4WD Robot Chassis?

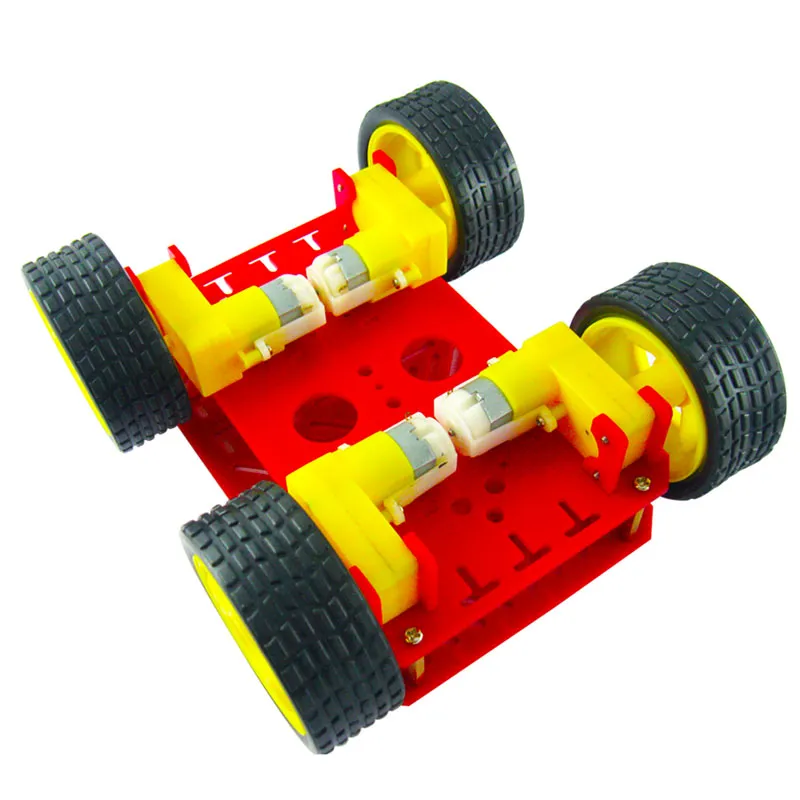

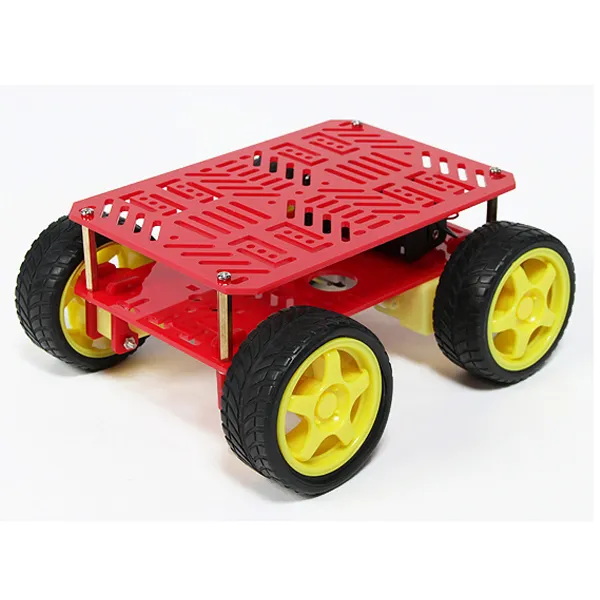

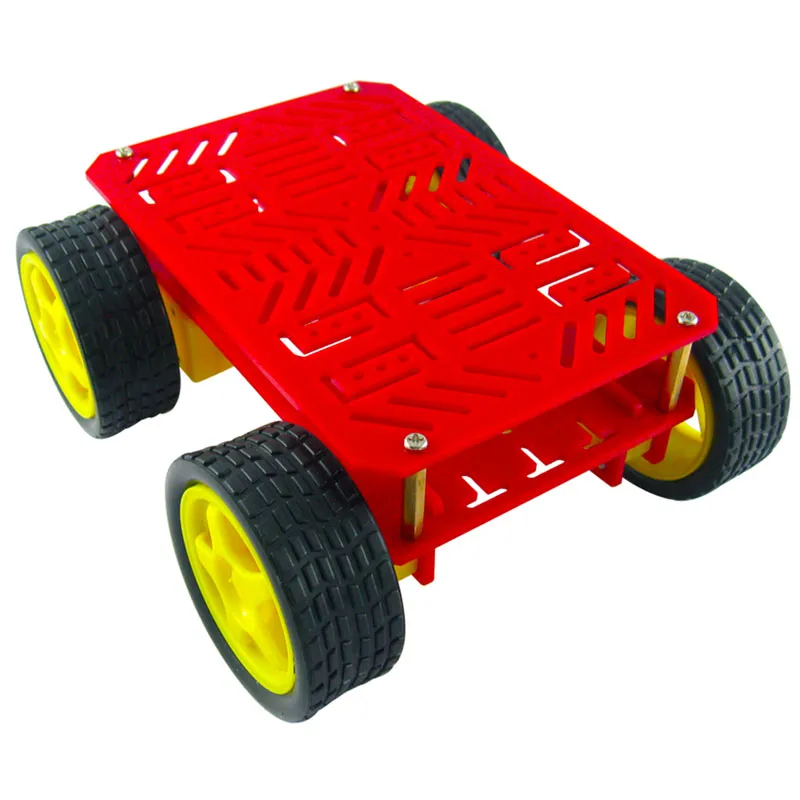

This 4WD robot chassis for Dagu robot consists of a platform rendered mobile by its 4 drive wheels equipped with their own gearmotor. It's powered by 4 AA batteries placed in a holder located between the Dagu chassis two plates.

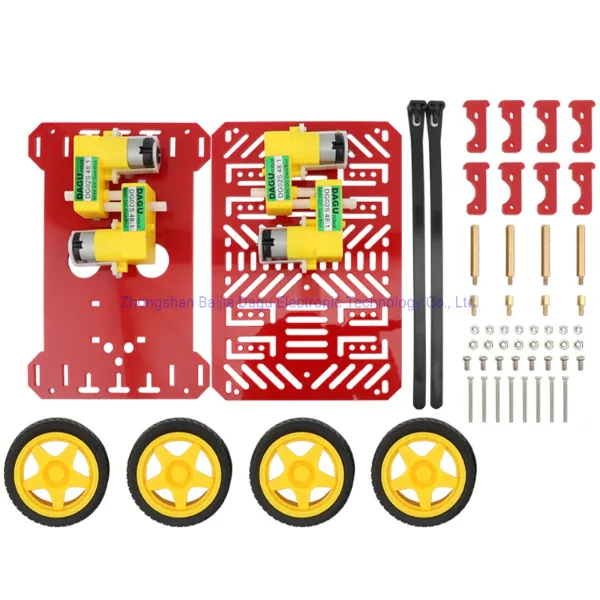

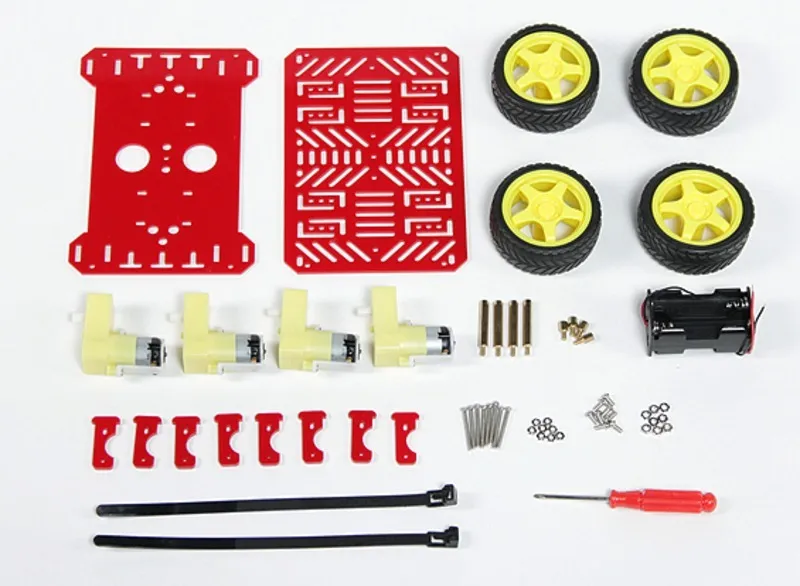

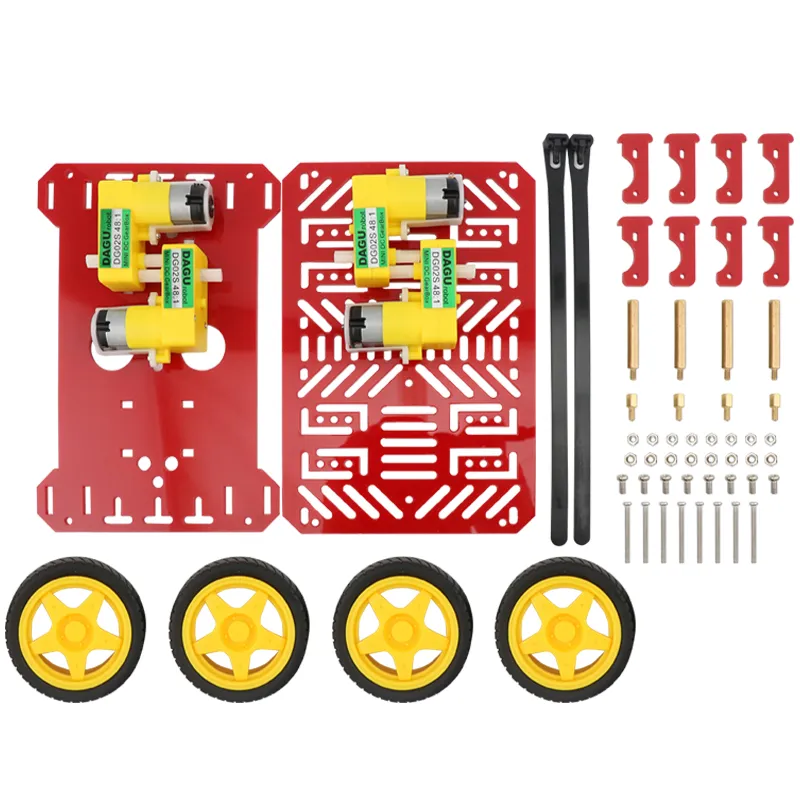

Composition and assembly of the Dagu robot 4WD chassis kitIn this kit, you'll find everything you need to assemble your 4WD robot chasis for Dagu robot, including:
4 drive wheels
A holder for 4 AA batteries (batteries is not inluded)
4 gearmotors and their holders
Varous structural components
A set of nuts, bolts and screws for assemly
This 4-motor robot chassis can be easily assembled in just 6 steps. But don't forget your screwdriver, essential for tightening the screws to ensure your 4WD Dagu robot chassis is nice and solid!
Technical specifications of the Dagu 4WD robot chassis
4 drive wheels
Chassis to be assembled
Suggested voltage: 4.5V DC
Speed: ±1.3km/h @6V DC
No-load speed: 90±10rpm
No-load current: 190mA (250mA max.)
Dimensions: 190*150*70mm
Wheel diameter: 65mm
